• extraordinary resistance to the penetration of toxic or otherwise dangerous substances (the mask facepiece is manufactured of brominated butyl rubber)

• long-period bearableness of the protective mask is safeguarded by the design and the form of the sealing collar and by the low breathing resistances of the set, containing a new filter of highly resistant plastics material

• the computer-aided optimized viewing field does not practically limit the spatial orientation of the user

• the design of the protective mask enables a correction of dioptrical defects and a compatibility with the basic military optical devices, including the noctovisor CLARA

• the hardened glass of the eye sight holes is very resistant to impacts and to scratching

• the device for accepting liquids affords a possibility of safe acceptance of liquids in a contaminated area

• easy communication and intelligibility of the speech are safeguarded by means of a sound-penetrating lining

• the protective filter may be attached both from the left and the right sides of the mask facepiece by means of the thread Rd 40x1/7"

• the optimum position of the mask on the head of the user is safeguarded by means of a rubberized fabric fastening means

• the material of all mask parts guarantees great resistance to aging and damaging, it can easily be maintained and enables overall decontamination of the set

Technical data:

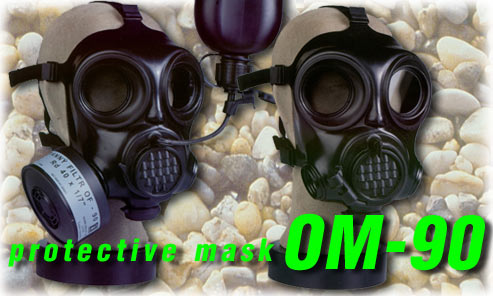

Protective mask OM-90

Facepiece:

Mean weight
Sizes number
Pressure losses at air passage 30 l/min.
at inhaling
at exhaling
Viewing field generally

Plastics filter OF-90
Weight
Size
Pressure losses at air passage 30 l/min.
Particles penetration coefficient
500 g
3

max. 20 Pa
max. 60 Pa
71 %

250 g
110x80 mm
max. 150 Pa
KP 0.0001 %
